Description

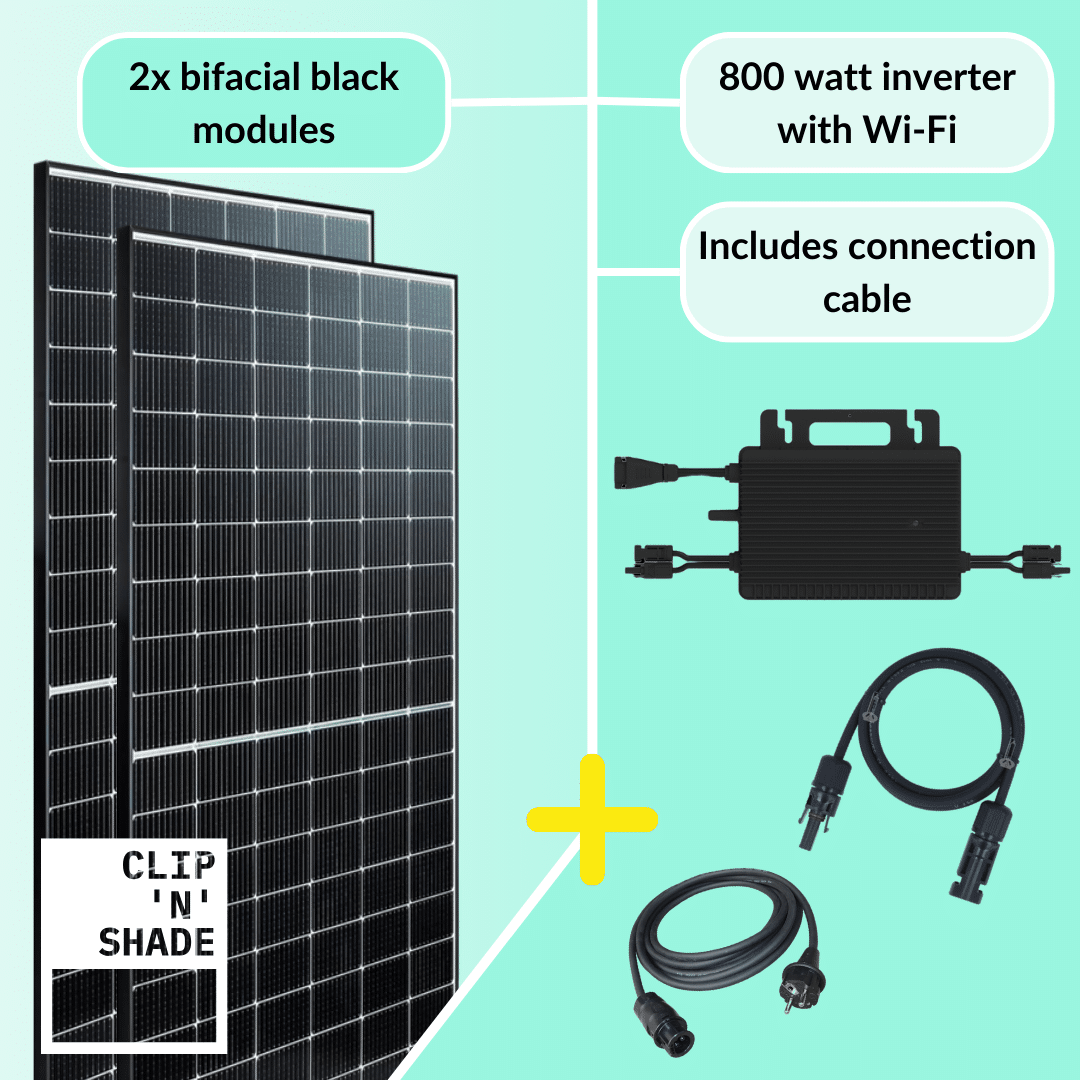

Balcony power station set 860 Wp HMS-800W-2T micro inverter Black Frame
- 2 x bifacial 430 Wp photovoltaic module
- 1 x Hoymiles HMS-800W-2T micro inverter
- 1 x connection cable Field Connector to Schuko plug 5 metres
- Mounting material. You can find this here, for example:
- Balcony mounting kit
- Flat roof/garden mounting kit
- Mounting set pitched roof
- Further sets for wall or trapezoidal sheet metal mounting on Enquiry available.
- If the modules are not mounted directly next to each other, an MC4 extension cable must be ordered separately.
Our balcony power plant is the ideal solution for those who want to benefit from their own solar power system but do not want to commission an expensive installation or make a huge investment. This product enables you to start producing your own solar energy immediately and reduce your electricity costs in the long term.
There are many possible applications: whether on a balcony, carport or the roof of a garden shed - the compact photovoltaic system with 2 modules can be installed anywhere.
You receive a ready-to-plug-in mini PV system that is ready for immediate use. With an output power of 800 watts, the balcony power station covers approx. 20% of your electricity requirements (depending on orientation and individual electricity requirements).
The balcony power station is extremely easy to install. No previous technical knowledge is required. You will find some information in the installation kits above to make installation easier.
The balcony power plant is supplied together with the micro inverter from Hoymiles and the two PV modules. Our technicians have tested the system extensively and achieved outstanding yields.
Your benefits at a glance:
✔ Simply plug together
Direct purchase from wholesalers in the photovoltaic sector
✔ Rapid replacement in the event of a warranty claim
Conveniently collect your order from our collection points
Secure your mini PV system and protect yourself from rising electricity costs.
Hoymiles HMS-800W-2T micro inverter with built-in WLAN module
- Plug-and-play for balcony solar systems
- Built-in Wi-Fi module
- Compatible with the S-Miles Cloud for monitoring and management.
- Adjustment of the output power.
- Increased safety thanks to rapid switch-off, conformity and insulated transformer.
Technical data
- Manufacturer: Hoymiles
- DC power (maximum input voltage): 16 V - 60 V
- Inputs per MPPT: 1
- Switch-on voltage: 22 V
- European efficiency: 96.70 %
- MPPT: 2
- MPPT voltage range: 320 W - 540W
- Phases: 1
- Product name: HMS-800W-2T
- Protection class: Outdoor IP67 (NEMA 6)
- Weight: 3.2 kg
- Warranty: 10 years
Photovoltaic module 430Wp Black Frame JAM54D40-430
- Attention: Due to delivery problems and strong price fluctuations, our modules vary. If you would like to know the exact model before purchasing, please contact our customer support via office@clipnshade.de.
- Up to 430 W peak power, 21.3 % module efficiency with high-density cell connection technology.
- Multi-busbar technology for more absorption, lower series resistance, improved current dissipation and increased reliability.
- Lower installation costs with increased performance and efficiency
- Excellent resistance to fire and difficult environmental conditions
- 5,400 Pa shear load and 4,000 Pa wind load (test loads)
- High compatibility with available inverters,
Optimisers and assembly systems - Easy handling thanks to perfect size and low weight.
Optimised transport costs - Flexible installation solutions for system use
Technical data
- Manufacturer: Yes Solar
- Solar cells: Monocrystalline - bifacial
- Cell arrangement: 144 cells
- Module dimensions: 1,722×1,134×30 mm
- Weight: 21.5 kg
- Glass: 3.2 mm, highly transparent, anti-reflective coated heat-strengthened glass
- Encapsulation material: EVA/POE
- Frame: 30 mm anodised aluminium alloy
- Junction box: IP 68
- Cable: Photovoltaic cable: 4.0 mm² Landscape format: 1,100/1,100 mm Portrait format: 280/350 mm*
- Connector: TS4 / MC4 EVO2*
| Output power: | 800 watts |
|---|---|
| Modules: | 2 modules |
This product contains 0% VAT, as PV systems up to a total output of 30kWp are exempt from VAT. THIS ONLY APPLIES TO PRIVATE INDIVIDUALS! Are you a trader? Then please contact us before purchasing!
